Innovations in Abrasive Wheel Technology

In industrial manufacturing, abrasive wheel technology is important for precision and efficiency. From their rudimentary origins to the cutting-edge innovations of today, abrasive wheels have continually transformed to meet the demands of a range of industries.

The customisation and precision of abrasive wheels are now more critical than ever, with computer-aided design (CAD) and 3D printing revolutionising production processes. Alongside these technical advancements, safety remains a paramount concern. Angle grinders, for example, are recognised as the third most dangerous tool and they cause around 5,400 injuries each year.

There has also been a push towards sustainability, which has introduced eco-friendly solutions in abrasive wheel technology, using sustainable materials and recycling practices to promote a greener manufacturing environment. Digitalisation and the integration of the Internet of Things (IoT) have further transformed the industry, offering real-time monitoring and predictive maintenance through advanced sensors and data analytics.

In this article, we’ll discuss just how innovative abrasive wheel technology can be.

The Evolution of Abrasive Wheel Technology

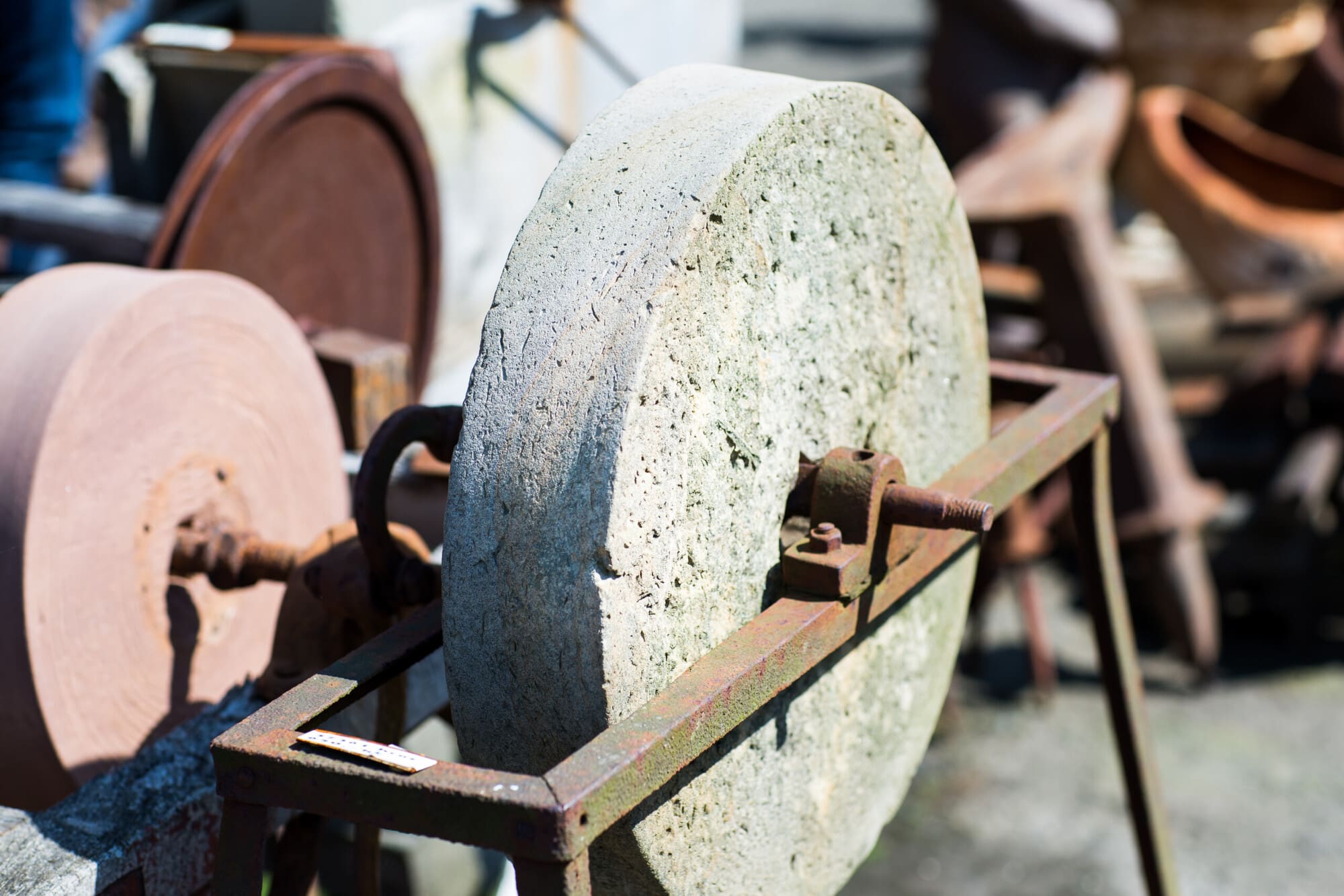

The history of abrasive wheels is as ancient as the need for grinding and sharpening tools. Early humans used naturally occurring stones to shape and refine tools and weapons. The advent of the wheel, a pivotal innovation, marked a significant leap forward. Initially, these primitive wheels were made from natural stones like sandstone, which provided a basic yet effective grinding surface.

As civilisations advanced, so did the technology of abrasive wheels. In ancient Egypt, abrasive stones were used to polish and shape stones for construction and ornamentation. By the time of the Roman Empire, the use of natural abrasives had expanded to include various minerals and stones, such as emery and quartz, to refine tools and weapons more efficiently. These early wheels were often rudimentary, requiring significant manual effort and yielding inconsistent results.

Traditional Challenges and Limitations

Despite their utility, conventional abrasive wheels face numerous challenges and limitations. One major issue was the inconsistent quality and durability of natural stones. The performance of these early wheels was highly variable, dependent on the natural characteristics of the stones used, leading to frequent replacements and maintenance.

Another significant limitation was the manual labour required to operate these wheels. Before the Industrial Revolution, grinding and sharpening with abrasive wheels were labour-intensive processes, often involving foot-powered or hand-cranked mechanisms. This not only limited the speed and efficiency of grinding operations but also introduced significant variability in the quality of the finished products.

Into the 19th Century

The 19th century saw the introduction of powered grinding machines, which marked a critical turning point. These machines used mechanical power to rotate abrasive wheels at higher speeds, significantly improving efficiency and consistency. However, the wheels themselves were still made from natural abrasives, which continued to pose challenges in terms of durability and performance.

Moreover, traditional abrasive wheels were limited by their material composition. Natural stones like sandstone, emery and quartz had inherent weaknesses, such as brittleness and a tendency to wear down quickly under heavy use. This meant frequent replacements were needed, which contributed to higher operational costs.

As the demands of industrial manufacturing grew, so did the need for more reliable and efficient abrasive wheels. The transition from natural to synthetic abrasives in the late 19th and early 20th centuries marked a significant milestone. Materials like silicon carbide and aluminium oxide began to replace natural stones, offering improved hardness, durability and consistency.

Despite these advancements, early synthetic abrasive wheels still faced challenges. They were prone to overheating, which could damage both the wheel and the workpiece. Additionally, the bonding agents used to hold the abrasive grains together were often susceptible to wear and degradation, further limiting the wheel’s lifespan and performance.

In summary, the historical development of abrasive wheels has been marked by a continuous quest for better materials and more efficient designs. From the rudimentary use of natural stones to the early adoption of synthetic materials, each innovation sought to address the inherent challenges and limitations of its predecessors. This relentless pursuit of improvement has laid the foundation for the advanced abrasive wheel technologies we see today, setting the stage for the next generation of cutting, grinding and polishing solutions.

Emerging Materials and Compositions

The field of abrasive wheel technology has seen remarkable advancements in recent years, primarily driven by the development of new materials and compositions. Modern abrasive wheels now incorporate a range of advanced materials designed to overcome the limitations of their predecessors and meet the demands of contemporary manufacturing processes.

Here are some of the materials now used:

• Advanced Ceramics: Advanced ceramics, such as zirconia alumina and silicon carbide, have become increasingly popular in abrasive wheel production. These materials are known for their exceptional hardness and thermal stability, making them ideal for high-speed grinding applications. Zirconia alumina, for instance, offers superior toughness and resistance to fracture, which significantly enhances the durability and efficiency of the wheels.
• Super Abrasives: Super abrasives, including cubic boron nitride (CBN) and polycrystalline diamond (PCD), represent the pinnacle of abrasive technology. These materials are engineered to provide unparalleled hardness and wear resistance. CBN wheels are particularly effective for grinding ferrous metals, while PCD wheels are used for non-ferrous metals, composites and even stone. The extraordinary properties of super abrasives allow for faster cutting speeds, reduced heat generation and extended wheel life.
• Hybrid Formulations: Hybrid abrasive wheels combine the best characteristics of multiple materials to create a more versatile and effective product. These formulations often blend traditional abrasives with advanced ceramics or super abrasives, resulting in wheels that can handle a broader range of applications. The hybrid approach optimises performance by balancing hardness, toughness and thermal resistance.

The Advantages of New Materials

The incorporation of advanced materials into abrasive wheels offers several key advantages:

• Longer Wheel Life: Advanced ceramics and super abrasives are significantly more durable than traditional materials. Their high wear resistance means that the wheels maintain their cutting efficiency over a longer period, reducing the frequency of replacements and downtime. This longevity translates into cost savings and improved productivity for manufacturers.
• Improved Cutting Performance: The enhanced hardness and precision of materials like CBN and PCD enable abrasive wheels to cut faster and more accurately. This results in cleaner cuts, finer finishes and less material waste. The superior cutting performance also reduces the need for secondary finishing processes, streamlining production workflows.
• Enhanced Thermal Stability: One of the major challenges in grinding operations is managing heat generation. Excessive heat can damage both the abrasive wheel and the workpiece. Advanced ceramics and super abrasives have excellent thermal conductivity and stability, which help dissipate heat more effectively. This reduces the risk of thermal damage, improves the quality of the finished product and extends the life of the wheel.
• Versatility and Customisation: The development of hybrid formulations allows for greater customisation of abrasive wheels to meet specific industry requirements. By combining different materials, manufacturers can tailor wheels to handle diverse applications, from rough grinding to precision finishing. This versatility makes hybrid abrasive wheels a valuable asset in various sectors, including automotive, aerospace and electronics.

The Contribution to Longer Wheel Life, Improved Cutting and Enhanced Performance

The advancements in abrasive wheel materials and compositions have a big impact on their performance and efficiency. Here’s how these innovations contribute to the overall improvement:

• Longer Wheel Life: The superior wear resistance of advanced ceramics and super abrasives ensures that abrasive wheels retain their cutting edges for extended periods. This durability reduces the need for frequent replacements, minimising downtime and maintenance costs. As a result, manufacturers can maintain higher levels of productivity and reduce operational expenses.
• Improved Cutting: The exceptional hardness and sharpness of materials like CBN and PCD allow abrasive wheels to achieve higher cutting speeds and finer finishes. This precision-cutting capability enhances the quality of the finished products, reduces material waste and decreases the need for subsequent finishing processes. Manufacturers benefit from increased efficiency and superior product quality.
• Enhanced Performance: The combination of advanced materials and hybrid formulations optimises the performance of abrasive wheels. These innovations enable wheels to handle a wider range of applications with greater efficiency. Enhanced thermal stability ensures that wheels can operate at higher speeds without overheating, further boosting their performance. The ability to customise wheels for specific tasks also improves overall manufacturing flexibility and capability.

In summary, the latest materials and compositions in abrasive wheel technology are driving significant improvements in wheel life, cutting performance and overall efficiency. By leveraging the properties of advanced ceramics, super abrasives and hybrid formulations, modern abrasive wheels are better equipped to meet the evolving demands of various industries, setting new standards for precision, durability and productivity.

Precision and Customisation

The manufacturing of abrasive wheels has undergone a significant transformation with the advent of precision techniques. These innovations ensure that abrasive wheels meet exacting standards, leading to superior performance and reliability in various applications.

Automated Manufacturing Processes

Automated systems have revolutionised the production of abrasive wheels, enabling consistent quality and precision. CNC (Computer Numerical Control) machining allows for precise shaping and finishing of abrasive wheels, ensuring that each wheel meets the stringent specifications required for high-performance applications. Automation reduces human error and enhances the reproducibility of wheel characteristics.

Advanced Bonding Techniques

The bonding process, which holds the abrasive grains together, is critical to the performance of abrasive wheels. Innovations in bonding materials and methods, such as vitrified and resin bonds, have improved the durability and cutting efficiency of the wheels. These advanced bonding techniques ensure uniform grain distribution and maintain the wheel’s structural integrity under high stress.

Precision Grain Placement

Modern manufacturing techniques allow for the precise placement of abrasive grains on the wheel surface. This precision grain placement enhances the cutting efficiency and consistency of the wheels. Techniques such as electroplating and sintering are used to achieve this high level of precision, resulting in wheels that deliver superior performance and longer life.

The Importance of Customisation

Customisation of abrasive wheels is essential to meet the diverse needs of various industries. Each industry has specific requirements for material removal, surface finish and operational efficiency, necessitating tailored solutions.

Industry-Specific Requirements

Different industries, such as automotive, aerospace, electronics and medical device manufacturing, have unique grinding and cutting needs. Customisation ensures that abrasive wheels are designed to handle the specific materials and tolerances required by these industries. For example, the aerospace industry often requires high-precision grinding of hard materials like titanium and nickel alloys, while the electronics industry demands ultra-fine finishes on delicate components.

Optimised Performance

Customised abrasive wheels are designed to maximise performance for specific applications. This optimisation includes selecting the appropriate abrasive material, grain size, bond type and wheel geometry. Customisation ensures that the wheels deliver the desired balance of cutting speed, surface finish and tool life, leading to enhanced productivity and cost-effectiveness.

Flexibility and Adaptability

The ability to customise abrasive wheels allows manufacturers to adapt to changing industry trends and requirements. This flexibility is crucial for staying competitive in a rapidly evolving market. Customised solutions enable manufacturers to address new challenges and opportunities, such as the need for more sustainable and eco-friendly abrasive products.

Using CAD and 3D Printing in Wheel Production

The integration of computer-aided design (CAD) and 3D printing technologies has brought a new level of precision and customisation to abrasive wheel production.

CAD software enables the precise design and simulation of abrasive wheels before they are manufactured. This digital design process allows engineers to optimise the wheel geometry, grain distribution and bonding methods to meet specific requirements. CAD models can be easily modified and tested, reducing the time and cost associated with prototyping. Additionally, CAD software allows for the simulation of wheel performance under various operating conditions, ensuring that the final product meets the desired specifications.

3D printing, also known as additive manufacturing, has opened up new possibilities for creating complex and customised abrasive wheels. This technology allows for the precise layering of materials to create wheels with unique geometries and internal structures that would be difficult or impossible to achieve with traditional manufacturing methods. 3D printing enables rapid prototyping and production of small batches, making it ideal for custom and specialised abrasive wheels.

For example, 3D printing can be used to create wheels with intricate cooling channels or specific porosity levels, enhancing their performance in demanding applications. The ability to quickly produce and test custom designs accelerates the development process and allows for more innovative solutions.

Safety Enhancements

Safety in abrasive wheel technology has seen substantial progress, with recent advancements focusing on reducing risks and enhancing protection for operators. These innovations are critical in preventing accidents and ensuring a safe working environment in various industrial settings.

Reinforced Wheel Designs

Modern abrasive wheels often incorporate reinforced designs to prevent breakage and fragmentation. This includes the use of high-strength materials and multiple layers of reinforcement, such as fibreglass mesh, which enhance the structural integrity of the wheels. Reinforced wheels are less prone to shattering under high stress, significantly reducing the risk of injury.

Enhanced Bonding Agents

Advances in bonding technology have led to the development of more resilient and durable bonding agents. These enhanced bonds maintain the wheel’s structural integrity during high-speed operations and under thermal stress. Improved bonding reduces the likelihood of wheel failure, contributing to safer grinding and cutting processes.

Protective Coatings

The application of protective coatings on abrasive wheels has become a common practice. These coatings can reduce wear, minimise heat buildup and protect the wheel from environmental factors that could compromise its safety. Some coatings also have anti-slip properties, enhancing the grip and control for the operator.

Technologies and Mechanisms that Reduce Risk

Several technologies and mechanisms have been developed to mitigate the risks associated with the use of abrasive wheels and these aim to protect operators from accidents and injuries.

Here are some examples:

• Vibration Damping Systems: Excessive vibration during grinding operations can lead to operator fatigue and increase the risk of accidents. Vibration damping systems, integrated into both the abrasive wheels and the machinery, help to absorb and reduce vibrations. These systems enhance operational stability and comfort, allowing for safer and more precise handling.
• Automatic Wheel Balancing: Imbalances in abrasive wheels can cause dangerous vibrations and reduce operational safety. Automatic wheel balancing systems detect and correct imbalances in real time, ensuring smooth and stable wheel rotation. This technology not only extends the life of the wheel but also minimises the risk of accidents caused by wheel wobble or vibration.
• Safety Guards and Shields: Modern grinding and cutting machines are equipped with advanced safety guards and shields designed to protect operators from flying debris and accidental contact with the wheel. These safety features are often adjustable and made from impact-resistant materials, providing a reliable barrier between the operator and the rotating wheel.
• Overload Protection Mechanisms: Overloading an abrasive wheel can lead to catastrophic failure. Overload protection mechanisms in grinding and cutting equipment monitor the load on the wheel and automatically shut down the machine if excessive force is detected. This prevents wheel breakage and protects the operator from potential harm.

The Importance of Compliance with Safety Standards and Regulations

Adhering to safety standards and regulations is crucial in ensuring the safe use of abrasive wheels. Compliance not only protects operators but also enhances the overall efficiency and reliability of manufacturing processes.

Regulatory Requirements

Various organisations, such as the Occupational Safety and Health Administration (OSHA) in the United States and the European Agency for Safety and Health at Work (EU-OSHA), have established stringent regulations for the safe use of abrasive wheels. These regulations cover aspects such as wheel storage, handling, mounting and operation. Compliance with these standards is mandatory and helps prevent workplace accidents.

Industry Standards

Industry-specific standards, such as those from the International Organisation for Standardisation (ISO), provide detailed guidelines on the manufacturing, testing and usage of abrasive wheels. These standards ensure that wheels are produced to meet high safety and performance criteria, reducing the risk of failures and accidents.

Training and Certification

Proper training and certification for operators are essential components of a comprehensive safety strategy. Training programmes educate workers on the correct handling, mounting and operation of abrasive wheels. Certification ensures that operators have the necessary skills and knowledge to use these tools safely. Employers are responsible for providing ongoing training and ensuring that all operators are certified and aware of the latest safety practices.

Routine Inspections and Maintenance

Regular inspections and maintenance of abrasive wheels and related equipment are critical for safety compliance. Routine checks help identify potential issues, such as cracks or wear before they lead to accidents. Maintenance procedures, including wheel dressing and balancing, ensure that wheels operate safely and efficiently throughout their service life.

Eco-Friendly Solutions

The manufacturing industry is increasingly focusing on sustainability, and abrasive wheel technology is no exception. Innovations in this field aim to reduce environmental impact through the development of eco-friendly products and practices.

Researchers are exploring the use of biodegradable materials and sustainably sourced raw materials in the production of abrasive wheels. This includes natural fibres, bio-based resins and other eco-friendly components that decompose more readily than traditional synthetic materials. These innovations reduce the long-term environmental footprint of discarded abrasive wheels.

Low-Emission Manufacturing Processes

Advancements in manufacturing processes aim to minimise emissions and energy consumption. For example, some manufacturers are adopting low-temperature curing methods and energy-efficient production techniques that reduce the carbon footprint associated with abrasive wheel production. These processes not only conserve energy but also lower greenhouse gas emissions.

Water-Based and Solvent-Free Bonds

Traditional abrasive wheels often use bonds that involve harmful solvents. Innovations in water-based and solvent-free bonding agents are reducing the release of volatile organic compounds (VOCs) during production. These eco-friendly bonds maintain high performance while significantly reducing the environmental impact.

The Use of Sustainable Materials and Recycling Practices

The shift towards sustainable materials and recycling practices is central to creating a more environmentally friendly abrasive wheel industry.

Using recycled abrasive grains from used wheels and other sources helps conserve natural resources. Advanced sorting and purification technologies enable the reuse of these grains without compromising performance. This practice reduces the demand for virgin materials and minimises waste.

The adoption of sustainably sourced raw materials, such as natural abrasives (e.g., garnet and walnut shells), supports eco-friendly production. These materials are renewable and biodegradable, making them an attractive alternative to synthetic abrasives. Ensuring that raw materials are sourced responsibly helps protect ecosystems and promotes sustainable development.

Recycling programmes for used abrasive wheels can significantly reduce waste too. These programmes involve collecting, processing and repurposing spent wheels, transforming them into new products or raw materials for other industries. Manufacturers can partner with recycling firms to create closed-loop systems that maximise resource efficiency and minimise landfill contributions.

Contribution of Eco-Friendly Wheels to a Greener Manufacturing Industry

Eco-friendly abrasive wheels offer multiple benefits that contribute to a more sustainable manufacturing industry.

• Reduce environmental impact by minimising waste, reducing emissions and conserving natural resources.
• Enhance corporate responsibility by meeting the growing demand for green products and complying with environmental regulations.
• Reduce costs in the long term due to energy-efficient manufacturing processes and lower operational costs.
• Improve worker safety and health by using non-toxic materials, water-based bonds and biodegradable materials.

Digitalisation and IoT Integration

Like many areas of manufacturing, the integration of digitalisation and the Internet of Things (IoT) is revolutionising the field of abrasive wheel technology. These advancements enhance precision, efficiency and reliability in manufacturing processes.

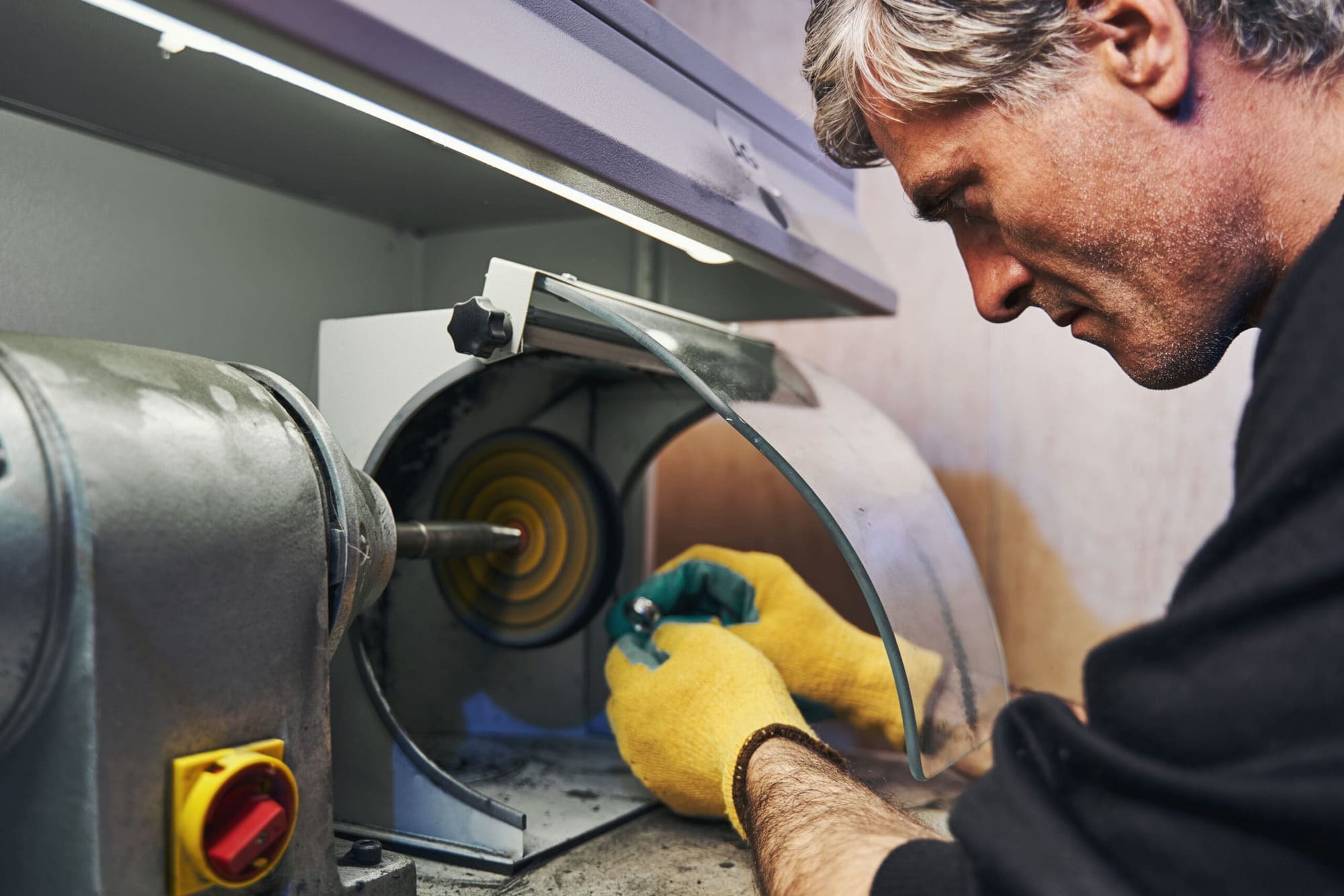

Smart Abrasive Wheels

Digitalisation has led to the development of smart abrasive wheels equipped with embedded sensors. These sensors collect real-time data on various parameters such as temperature, vibration and rotational speed. The data is transmitted to a central system for analysis, enabling continuous monitoring of wheel performance.

IoT Connectivity

IoT connectivity allows abrasive wheels and related equipment to communicate with each other and with centralised monitoring systems. This interconnected network facilitates the seamless exchange of information, enabling coordinated and optimised operations across the manufacturing floor. IoT-enabled systems can automatically adjust operational parameters based on real-time data, improving overall process efficiency.

The Use of Sensors and Data Analytics for Monitoring and Predictive Maintenance

The incorporation of sensors and data analytics plays a crucial role in monitoring abrasive wheel performance and predicting maintenance needs.

• Performance Monitoring: Sensors embedded in abrasive wheels and grinding machines provide continuous feedback on critical performance metrics. For example, sensors can detect changes in wheel diameter, surface condition and wear patterns. This real-time monitoring helps identify issues such as wheel imbalance or excessive wear before they lead to operational failures.
• Predictive Maintenance: Data analytics, powered by machine learning algorithms, analyse the data collected from sensors to predict when maintenance is required. By identifying patterns and trends, predictive maintenance systems can forecast potential issues and schedule maintenance activities proactively. This approach reduces unplanned downtime, extends the life of abrasive wheels and optimises maintenance schedules.
• Quality Control: Data collected from sensors can also be used to ensure consistent quality in grinding and cutting processes. By monitoring parameters such as grinding force and temperature, manufacturers can maintain optimal conditions, leading to higher-quality finished products. Any deviations from set parameters trigger alerts, allowing for immediate corrective actions.

Benefits of Real-Time Monitoring for Efficiency and Cost Savings

Real-time monitoring of abrasive wheel performance offers several significant benefits for manufacturing efficiency and cost savings. This includes:

• Increased operational efficiency
• Reduced downtime
• Cost savings
• Enhanced safety
• Data-driven decision-making

In summary, the digitalisation and IoT integration in abrasive wheel technology brings transformative benefits to the manufacturing industry. By using sensors, data analytics and real-time monitoring, manufacturers can achieve higher efficiency, reduced costs, enhanced safety and improved decision-making. These advancements position abrasive wheel technology at the forefront of modern, smart manufacturing practices.
